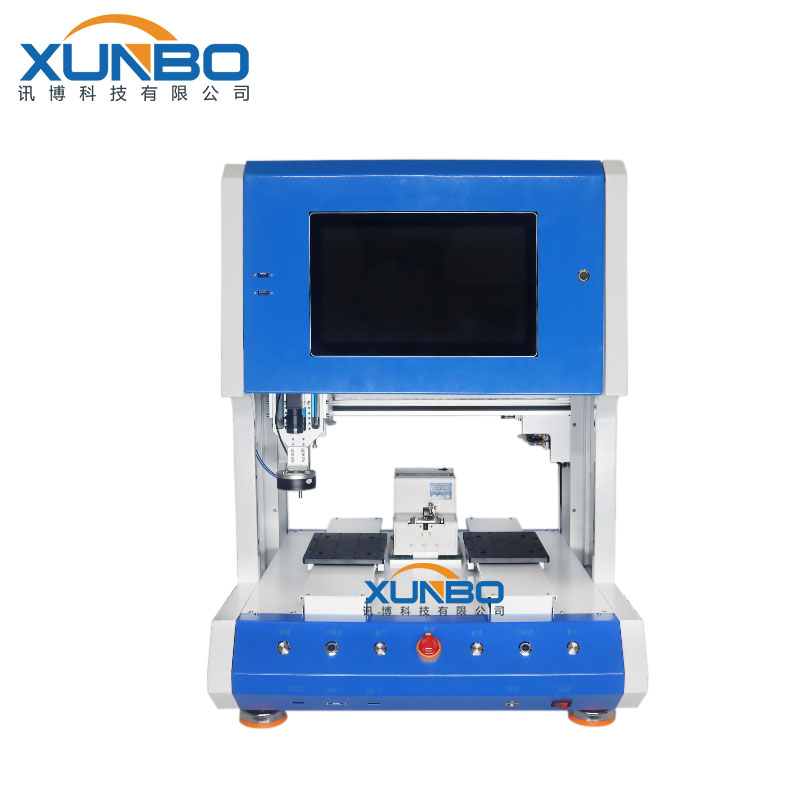

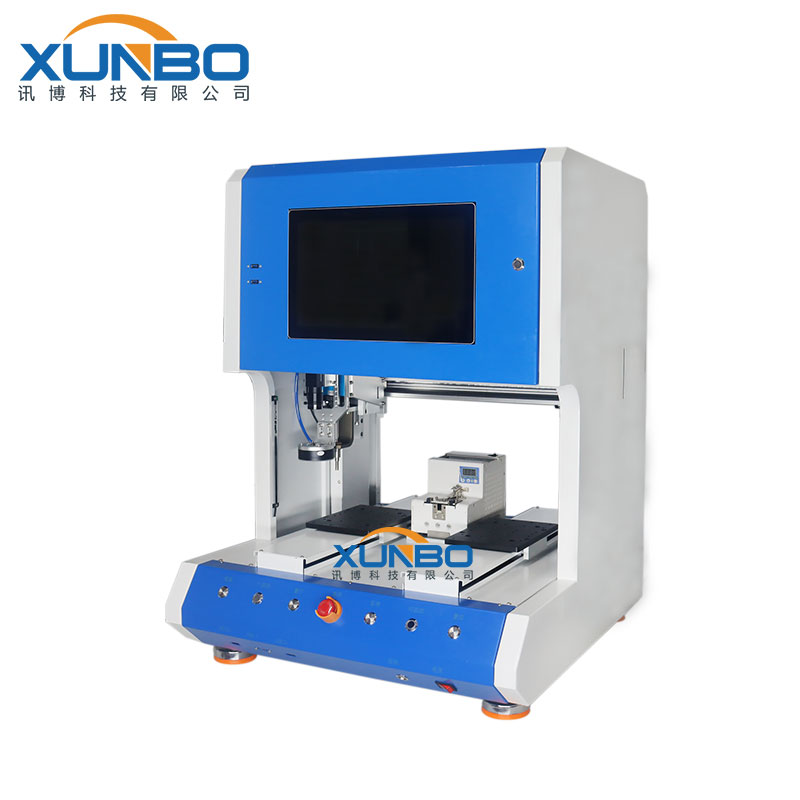

桌面视觉锁螺丝机-深圳讯博科技

讯博桌面视觉螺丝机-视觉系统界面Xunbo desktop vision screw machine - vision system interface

锁付参数界面Lock parameters interface:

每颗螺丝的锁付转速,扭力值等数据可精准设置可选配:附带标准版软件,提供后续接入MES系统的软硬件接口。The locking speed, torque value and other data of each screw can be accurately set. Optional: With standard version software, it provides hardware and software interfaces for subsequent access to MES system.

工作记录界面Work record interface:

记录每一颗螺丝的拧紧过程参数和拧紧结果最多保持21000条记录,超过21000记录后，系统自动维护记录删减。Record the tightening process parameters and tightening results of each screw. A maximum of 21000 records are kept. When more than 21000 records are recorded, the system automatically deletes the maintenance records.

多种视觉检测自动纠偏功能保证锁付精度A variety of visual detection automatic correction functions ensure the accuracy of the lock

1、支持单mark、双mark、圆孔定位多种视觉算法;Support single mark, double mark, round hole positioning of a variety of visual algorithms;

2、支持激光测高,浮锁精度士0.02mm,精准检测每颗螺丝锁付状态；Support laser height measurement, float lock accuracy of 0.02mm, accurate detection of each screw lock status；

3、支持在线、离线模式,配合流水线盒机械手作业;Support online, offline mode, with line box manipulator operation;

4、支持dxf导入位坐标,提高编程效率;Support dxf import bit coordinates, improve programming efficiency;

5、支持产品编码扫码,锁付全过程数据支持上传MES系统;Support product code scanning, lock and pay the whole process data support upload MES system;

6、支持多种取料方式和锁付方式;Support a variety of materials and lock payment methods;

7、支持多电批工作；Support multi-batch work；

文件记录界面File recording interface:

1.记录每一颗螺丝的锁付时间,拧紧过程参数和拧紧结果可实现精准查询;Record the locking time of each screw, tightening process parameters and tightening results can achieve accurate query;

2.设备产量,完成量一目了然。Equipment output, complete quantity at a glance.

波形对比界面Waveform comparison interface:

显示每颗螺丝锁付时整个过程的详细波形数据,采样精度3ms框选部分区域放大波形,右键点击返回波形上一次放大显示状态。Display the detailed waveform data of the whole process when each screw is locked. The sampling accuracy is 3ms. Select some areas in the box to enlarge the waveform.

讯博科技桌面视觉自动锁螺丝机参数
